1000L IBC Aseptic Filling Resin Filling Machine

2025-07-05 16:46:48 glzon

Filling Resin Filling Machine

Model NO.
GZM-1000L
Type
Weighing-type Filling Machine
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Single-Head
Feed Cylinder Structure
Single-Room Feeding
Dosing Device
Drum Barrel
Filling Principle
Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Linear
Packaging
Barrel
Packaging Material
Wood
Application
Food, Beverages, Daily Necessities, Chemicals
Core Components
Pressure Vessels, Pumps, Plcs, Gears, Bearings, Ge
Voltage
220V 50/60Hz
Applicable Industries
Hotels, Manufacturing Plants, Food and Beverage Pl
Filling Accuracy
0.2%
Transport Package
Wood
Specification
1500*1300*1700mm
Trademark
GLZON
Origin
Shanghai

Packaging & Delivery

Package Size
160.00cm * 80.00cm * 180.00cm
Package Gross Weight
300.000kg

Product Description



Product Description

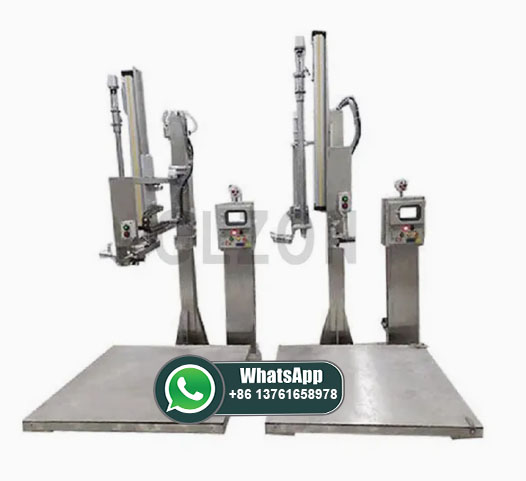

1000L IBC Aseptic Filling Resin Filling Machine
Suitable for barrel shape



1000L IBC Aseptic Filling Resin Filling Machine                                10L                                                                               30L                                                                                   50L
1000L IBC Aseptic Filling Resin Filling Machine                                200L                                                                          1000L                                                                             1000L

Product Parameters

Applicable materialsCoatings, inks, paints, asphalt, glue, lubricants, petrochemicals, fine chemicals and other liquids
Filling range(L)100-1000L
power supplyAC220V 50/60Hz
Air pressure (Mpa)0.6-0.8MPA
Filling accuracy (%)±0.2%
Speed(can/hour)30-50 barrels(Depending on the material flow rate)
Materialsus304/sus316/carbon steel/PTFE

Product features

    ? The system adopts programmable PLC control, and the operation isguided by Chinese language, which is safe and reliable.
    ? Manual barrel loading, automatic filling, automatic conveying, manual capping, automatic positioning, easy to disassemble and wash
    ? The filling gun is manufactured with an integral process to prevent dripping and splashing; the quick-release connector is easy to disassemble and clean.
    ? The system target value can be set freely, and the height of the filling gun is adjustable, suitable for rapid filling of packaging barrels of various specifications.
    ? Good stability, reduce losses, save costs, improve  operating efficiency, and reduce manual operation pressure.
1000L IBC Aseptic Filling Resin Filling Machine
Detailed Photos


1000L IBC Aseptic Filling Resin Filling Machine
Features

The liquid filling machine is a semi-automatic, rotating spray valve liquid filling machine (the most horizontal one).The maximum movable volume is 600mm. This machine adopts filling on or under the liquid surface, which can meet a variety of needs.

Liquid automatic filling needs: The uniquely designed spray valve is easy to operate and the filling is fast and accurate.
And it minimizes the dripping of residual liquid when the filling is completed. Suitable for safe environments and can
Filling of barrels and containers of various sizes.
How to operate


? During operation, as long as the empty barrel is loaded onto the empty barrel pipeline, the machine will automatically stop, and the nozzle device will automatically place the empty barrel directly under the nozzle of the nozzle;

? The nozzle valve will automatically drop into the barrel mouth, the empty barrel will automatically be peeled, and then the specific gravity will be accurately measured at two speeds, and the nozzle valve will automatically connect to the outside of the barrel, enter the full barrel pipeline, and reach the capping position;

? After the pipeline machine stops, the cap is placed manually, the capping machine pulls down the cap, and the weighing is completed.
1000L IBC Aseptic Filling Resin Filling Machine

1000L IBC Aseptic Filling Resin Filling Machine
Touch screen PLC control

Touch screen, PLC, C3 level load cell, dual 6-bit high-precision weighing controller (sampling speed up to 128 times/second), and frequency converter to ensure filling quality and accuracy

Pneumatic filling

Computer weighing, submersible filling, frequency conversion three-speed adjustment. The filling volume can be set directly, easy to operate, and has a gap compensation function
1000L IBC Aseptic Filling Resin Filling Machine

Company Profile

1000L IBC Aseptic Filling Resin Filling Machine

Our company

Shanghai Guangzhi Automation Equipment Co., Ltd. is a domestic
high-tech enterprise located in Songjiang District, Shanghai. This is
Shanghai's large industry and large equipment manufacturing base.
"High excellence and high compatibility" is the manufacturing guideline
of Shanghai Guangzhi Instrument Equipment Co., Ltd. The company
has passed the IS09001 international quality system certification and
IS014001 environmental management system certification. The
mechanical equipment is gradually passing the "CE certification".
Shanghai Guangzhi Specializing in the production of packaging
machinery, customers are welcome to negotiate.



Factory strength display



1000L IBC Aseptic Filling Resin Filling Machine
Shipping scenario
1000L IBC Aseptic Filling Resin Filling Machine1000L IBC Aseptic Filling Resin Filling Machine

Component brand

1000L IBC Aseptic Filling Resin Filling Machine
Special note

Note: Our company reserves the right to update product designs and speci?cations at any time. The product information description on this page does not constitute any guarantee or commitment, and is not regarded as a product or service contract term.
